AFC/Compact - Flexibel kanalanslutning

AFC/Compact

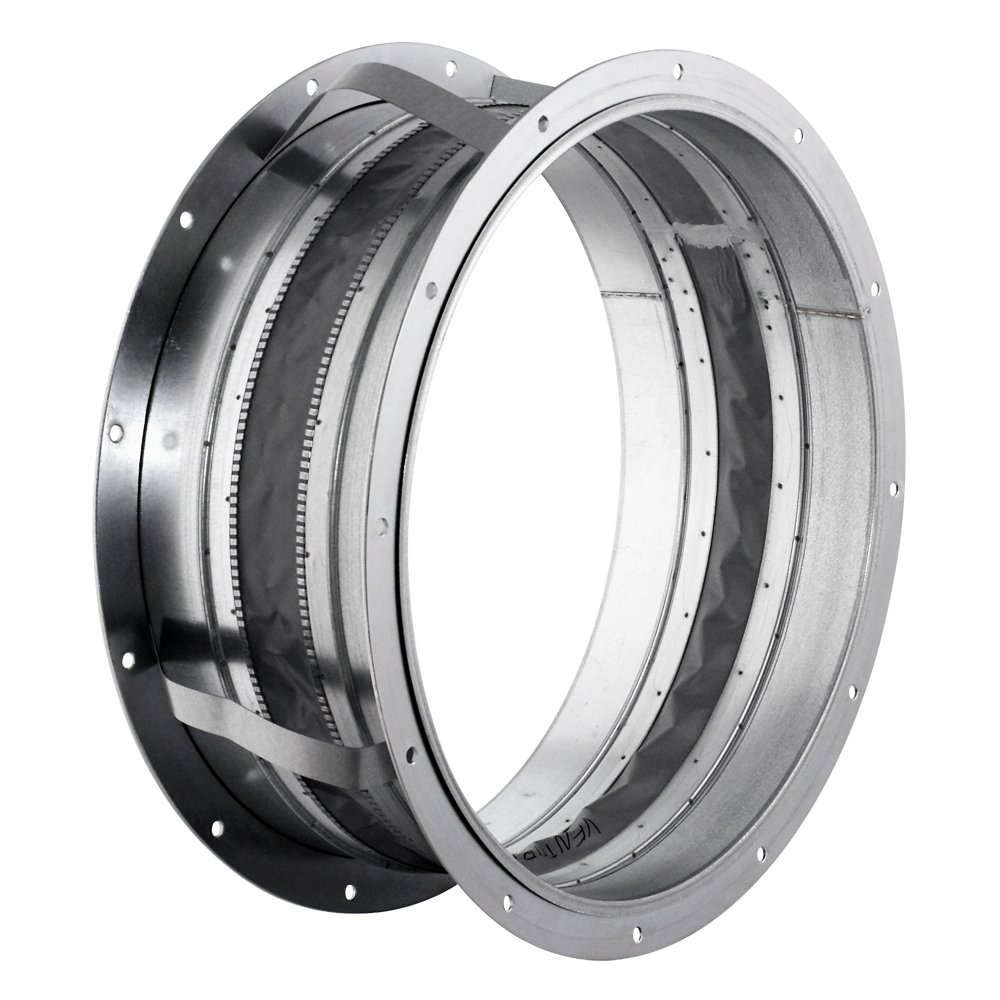

Flexibel kanalanslutning

Flexibla anslutningsstosar att användas till axialfläkten AFC
Kontakta oss

Tillämpning

Används tillsammans med AFC-fläktar för att minimera ljudnivå och vibrationer vid montering i ett kanalsystem.

Teknisk support

Välj en fläkt www.fanselectoronline.com

m3/h
Pa

Dimensioner

Typ B N ØA ØC ØD ØE
  mm mm mm mm mm mm
ZP AFC/Compact 250 132 8 310 280 250 10
ZP Compact 315 132 8 375 345 315 10
ZP AFC 315 132 8 386 345 315 10
ZP Compact 355 132 8 426 395 355 10
ZP AFC 355 132 8 426 395 355 10
ZP Compact 400 132 8 500 450 400 12
ZP AFC 400 132 8 480 450 400 12
ZP Compact 450 132 8 545 500 450 12
ZP AFC 450 132 8 530 500 450 12
ZP Compact 500 132 12 600 550 500 12
ZP AFC 500 132 12 590 560 500 12
ZP Compact 560 132 12 655 610 560 12
ZP AFC 560 132 12 650 620 560 12
ZP Compact 630 132 12 725 690 630 12
ZP AFC 630 132 12 720 690 630 12
ZP Compact 710 132 16 806 770 710 12
ZP AFC 710 132 16 800 770 710 12
ZP Compact 800 132 16 896 860 800 12
ZP AFC 800 132 16 890 860 800 12
ZP AFC 900 132 16 1005 970 900 15
ZP AFC 1000 132 16 1105 1070 1000 15
ZP AFC 1120 132 20 1260 1190 1120 15
ZP AFC 1250 132 20 1390 1320 1250 15
