Fläkt konstruerad för transport av icke-aggressiva och icke-explosiva gaser med lågt stoftinnehåll. Används:

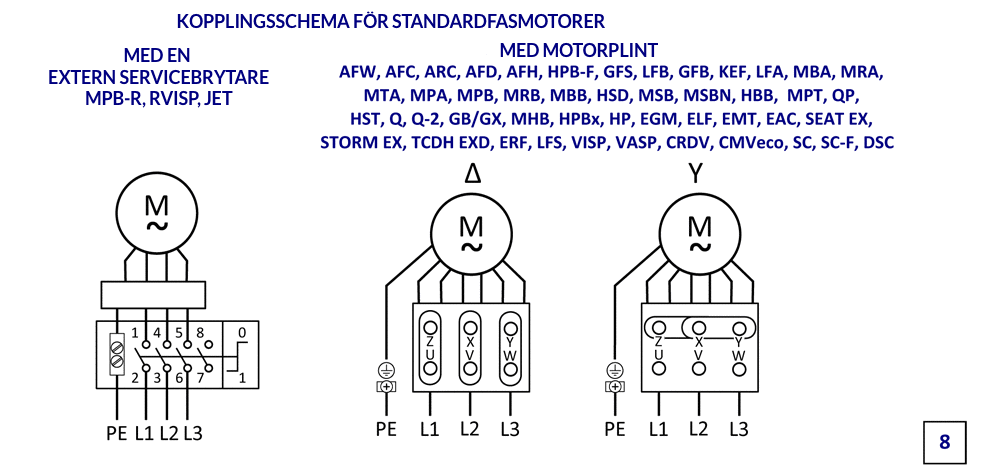

Typ | A | B | C | E | F | G | H | I | J |
---|---|---|---|---|---|---|---|---|---|
mm | mm | mm | mm | mm | mm | mm | mm | mm | |
GFB/2-97/42-003S | 199 | 200 | 204 | 99 | 115 | 64 | 65 | 76 | 76 |
GFB/2-97/42-005T | 199 | 200 | 204 | 99 | 115 | 64 | 65 | 76 | 76 |
GFB/2-108/42-009T | 238 | 245 | 276 | 115 | 142 | 91 | 88 | 115 | 105 |
GFB/2-133/62-018T | 238 | 245 | 276 | 115 | 142 | 91 | 88 | 115 | 105 |
GFB/2-146/62-025S | 258 | 270 | 288 | 123 | 155 | 91 | 88 | 115 | 105 |
GFB/2-146/62-025T | 258 | 270 | 288 | 123 | 155 | 91 | 88 | 115 | 105 |
GFB/2-160/62-037S | 281 | 296 | 291 | 132 | 170 | 90 | 107 | 110 | 120 |
GFB/2-160/62-037T | 281 | 296 | 291 | 132 | 170 | 90 | 107 | 110 | 120 |
GFB/2-180/62-075S | 312 | 334 | 345 | 145 | 192 | 100 | 123 | 130 | 130 |
GFB/2-180/62-075T | 312 | 334 | 345 | 145 | 192 | 100 | 123 | 130 | 130 |
GFB/2-200/74-110S | 370 | 370 | 393 | 182 | 213 | 119 | 134 | 143 | 160 |
GFB/2-200/74-110T | 370 | 370 | 393 | 182 | 213 | 119 | 134 | 143 | 160 |
GFB/4-200/74-037T | 370 | 370 | 393 | 182 | 213 | 119 | 134 | 143 | 160 |
GFB/2-225/104-300T | 374 | 382 | 462 | 182 | 217 | 148 | 136 | 173 | 161 |
Typ | K | L | O | S | T | X | D1 |
---|---|---|---|---|---|---|---|
mm | mm | mm | mm | mm | mm | mm | |
GFB/2-97/42-003S | 90 | 90 | 34 | 36 | 4 | ||
GFB/2-97/42-005T | 90 | 90 | 34 | 36 | 4 | ||
GFB/2-108/42-009T | 130 | 120 | 45 | 49 | 4 | ||
GFB/2-133/62-018T | 130 | 120 | 45 | 49 | 4 | ||
GFB/2-146/62-025S | 130 | 120 | 45 | 49 | 4 | ||
GFB/2-146/62-025T | 130 | 120 | 45 | 49 | 4 | ||
GFB/2-160/62-037S | 126 | 140 | 55 | 49 | 4 | ||
GFB/2-160/62-037T | 126 | 140 | 55 | 49 | 4 | ||
GFB/2-180/62-075S | 155 | 155 | 62 | 53 | 3 | ||
GFB/2-180/62-075T | 155 | 155 | 62 | 53 | 3 | ||
GFB/2-200/74-110S | 163 | 180 | 70 | 64 | 4 | ||
GFB/2-200/74-110T | 163 | 180 | 70 | 64 | 4 | ||
GFB/4-200/74-037T | 163 | 180 | 70 | 64 | 4 | ||
GFB/2-225/104-300T | 193 | 181 | 74 | 78 | 4 |
Typ | D2 | O1 | X1 | ØO | ØD1 | ØD2 | ØO1 |
---|---|---|---|---|---|---|---|
mm | mm | mm | mm | mm | mm | mm | |
GFB/2-97/42-003S | 8 | 6 | 120 | 130 | 3 | ||
GFB/2-97/42-005T | 8 | 6 | 120 | 130 | 3 | ||
GFB/2-108/42-009T | 6 | 7 | 150 | 160 | 3 | ||
GFB/2-133/62-018T | 6 | 7 | 150 | 160 | 3 | ||
GFB/2-146/62-025S | 8 | 7 | 160 | 175 | 3 | ||
GFB/2-146/62-025T | 8 | 7 | 160 | 175 | 3 | ||
GFB/2-160/62-037S | 8 | 7 | 172 | 182 | 3 | ||
GFB/2-160/62-037T | 8 | 7 | 172 | 182 | 3 | ||
GFB/2-180/62-075S | 8 | 7 | 200 | 210 | 3 | ||
GFB/2-180/62-075T | 8 | 7 | 200 | 210 | 3 | ||
GFB/2-200/74-110S | 8 | 7 | 222 | 235 | 3 | ||
GFB/2-200/74-110T | 8 | 7 | 222 | 235 | 3 | ||
GFB/4-200/74-037T | 8 | 7 | 222 | 235 | 3 | ||
GFB/2-225/104-300T | 8 | 11 | 250 | 280 | 6 |
Typ | A | B | C | E | F | G | H | I | J | K |
---|---|---|---|---|---|---|---|---|---|---|
mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | |
GFB/2-250/114-550T | 418 | 522 | 538 | 202 | 343 | 175 | 195 | 210 | 230 | 235 |
Typ | L | O | S | T | X | D1 | D2 | N1 |
---|---|---|---|---|---|---|---|---|
mm | mm | mm | mm | mm | mm | mm | mm | |
GFB/2-250/114-550T | 255 | 192 | 90 | 4 | 20 |
Typ | N2 | N3 | N4 | N5 | O1 | O2 | P1 | P2 |
---|---|---|---|---|---|---|---|---|
mm | mm | mm | mm | mm | mm | mm | mm | |
GFB/2-250/114-550T | 190 | 360 | 380 | 470 | 290 | 326 |
Typ | P3 | X1 | X2 | ØO | ØD1 | ØD2 | ØO1 | ØO2 |
---|---|---|---|---|---|---|---|---|
mm | mm | mm | mm | mm | mm | mm | mm | |
GFB/2-250/114-550T | 350 | 8 | 6 | 11 | 290 | 310 | 7 | 11 |
Typ | A | B | C | E | F | G | H | I |
---|---|---|---|---|---|---|---|---|
mm | mm | mm | mm | mm | mm | mm | mm | |
GFB/4-250/114-075S | 418 | 595 | 419 | 202 | 343 | 175 | 195 | 210 |
GFB/4-250/114-075T | 418 | 595 | 419 | 202 | 343 | 175 | 195 | 210 |
Typ | J | K | L | S | T | X | N1 |
---|---|---|---|---|---|---|---|
mm | mm | mm | mm | mm | mm | mm | |
GFB/4-250/114-075S | 230 | 235 | 255 | 494 | 87 | 4 | 20 |
GFB/4-250/114-075T | 230 | 235 | 255 | 494 | 87 | 4 | 20 |
Typ | N2 | N3 | N4 | N5 | P1 | P2 | P3 |
---|---|---|---|---|---|---|---|
mm | mm | mm | mm | mm | mm | mm | |
GFB/4-250/114-075S | 190 | 360 | 380 | 470 | 290 | 323 | 350 |
GFB/4-250/114-075T | 190 | 360 | 380 | 470 | 290 | 323 | 350 |
Typ | X1 | X2 | ØO | ØD1 | ØD2 | ØO1 | ØO2 |
---|---|---|---|---|---|---|---|
mm | mm | mm | mm | mm | mm | mm | |
GFB/4-250/114-075S | 8 | 6 | 11 | 290 | 310 | 7 | 11 |
GFB/4-250/114-075T | 8 | 6 | 11 | 290 | 310 | 7 | 11 |
Typ | A | B | C | E | F | G | H | I | J |
---|---|---|---|---|---|---|---|---|---|
mm | mm | mm | mm | mm | mm | mm | mm | mm | |
GFB/4-315/143-300T | 502 | 789 | 552 | 215 | 443 | 237 | 247 | 271 | 281 |
Typ | K | L | N | S | T | X | G1 | H1 |
---|---|---|---|---|---|---|---|---|
mm | mm | mm | mm | mm | mm | mm | mm | |
GFB/4-315/143-300T | 305 | 315 | 660 | 121 | 8 | 136 | 140 |
Typ | N1 | N2 | N3 | N4 | N5 | N6 | P1 | P2 |
---|---|---|---|---|---|---|---|---|
mm | mm | mm | mm | mm | mm | mm | mm | |
GFB/4-315/143-300T | 25 | 210 | 395 | 420 | 422 | 543 | 220 | 253 |
Typ | P3 | X1 | X2 | ØO | ØD1 | ØD2 | ØO1 | ØO2 |
---|---|---|---|---|---|---|---|---|
mm | mm | mm | mm | mm | mm | mm | mm | |
GFB/4-315/143-300T | 280 | 7 | 6 | 11 | 360 | 374 | 6 | 12 |
Typ | A | B | C | E | F | G | H | I |
---|---|---|---|---|---|---|---|---|
mm | mm | mm | mm | mm | mm | mm | mm | |
GFB/4-400/183-750T | 661 | 858 | 695 | 282 | 535 | 298 | 281 | 332 |
GFB/6-400/183-220T | 661 | 858 | 695 | 282 | 535 | 298 | 281 | 332 |
Typ | J | K | L | S | T | X | G1 | H1 |
---|---|---|---|---|---|---|---|---|
mm | mm | mm | mm | mm | mm | mm | mm | |
GFB/4-400/183-750T | 315 | 366 | 349 | 246 | 152 | 8 | 166 | 158 |
GFB/6-400/183-220T | 315 | 366 | 349 | 246 | 152 | 8 | 166 | 158 |
Typ | N1 | N2 | N3 | N4 | N5 | N6 | P1 | P2 |
---|---|---|---|---|---|---|---|---|
mm | mm | mm | mm | mm | mm | mm | mm | |
GFB/4-400/183-750T | 30 | 260 | 490 | 532 | 540 | 684 | 350 | 394 |
GFB/6-400/183-220T | 30 | 260 | 490 | 532 | 540 | 684 | 350 | 394 |
Typ | P3 | X1 | X2 | ØO | ØD1 | ØD2 | ØO1 | ØO2 |
---|---|---|---|---|---|---|---|---|
mm | mm | mm | mm | mm | mm | mm | mm | |
GFB/4-400/183-750T | 430 | 8 | 6 | 11 | 446 | 465 | 9 | 14 |
GFB/6-400/183-220T | 430 | 8 | 6 | 11 | 446 | 465 | 9 | 14 |
Typ | A | B | C | E | F | G | H |
---|---|---|---|---|---|---|---|
mm | mm | mm | mm | mm | mm | mm | |
GFB/6-450/203-550T | 697 | 844 | 732 | 295 | 500 | 323 | 303 |
Typ | I | J | K | L | S | T | X |
---|---|---|---|---|---|---|---|
mm | mm | mm | mm | mm | mm | mm | |
GFB/6-450/203-550T | 340 | 330 | 369 | 360 | 200 | 164 | 4 |
Typ | N1 | N2 | N3 | N4 | P1 | P2 | P3 |
---|---|---|---|---|---|---|---|
mm | mm | mm | mm | mm | mm | mm | |
GFB/6-450/203-550T | 15 | 464 | 615 | 630 | 280 | 324 | 360 |
Typ | X1 | X2 | ØO | ØD1 | ØD2 | ØO1 | ØO2 |
---|---|---|---|---|---|---|---|
mm | mm | mm | mm | mm | mm | mm | |
GFB/6-450/203-550T | 12 | 4 | 9 | 500 | 565 | 9 | 10 |
